Name: AGM RATTLER V2 35-640
Brand: AGM
SKU: 314205550205R361
Price: 4395.0000 USD
Availability: InStock

PART #314205550205R361

0 reviews | Write a review

Description And features

Our Premium Rattler Thermal Scopes just got a whole lot better! - Introducing the AGM RattlerV2 35-640

This thermal scope features a 35mm Germanium lens, a 640 × 512 resolution thermal sensor, and a 2x base magnification with a detection range of up to 1800 m/yd. Out of the two premium 640-resolution options, this thermal scope has a lower base magnification and a wider Field of View (12.5° × 10.0° or 65 ft @ 100 yds) providing extensive area coverage while scanning

The RattlerV2 35-640 includes features familiar to AGM Rattler users, with some additional game-changing improvements such as an upgraded battery compartment that accommodates a rechargeable battery extending run time to 9 hours and a new 12-micron thermal sensor that has the highest sensitivity rating (sub-20 mk) on the market.

Notable features include Shot Activated Recording, a simplified menu layout, and 10 reticle options with multiple zeroing profiles for various calibers and rifles. The scope also comes with a custom ADM QD Mount for easy removal and reattachment, Wi-Fi hotspot connectivity through the AGM app, a user-friendly, raised 5-button layout for easy navigation, even with gloves, and much more!

Warning: California's Proposition 65

Upgraded Scope Body Design
35mm Germanium lens
640 × 512 resolution thermal sensor
2x base magnification
2× - 16× digital zoom
Detection range up to 1800 m/yd
Field of View at 12.5° × 10.0° (65 ft @ 100 yds)
50 Hz Refresh Rate
Enhanced focus ring with short throw
Upgraded Lens Cap
Rechargeable battery with up to 11 hours of run time
Shot Activated Recording
Video and Audio Recording
Simplified menu layout for ease of use
10 different reticle options
Multiple zeroing profiles for various calibers and rifles
Custom ADM QD Mount for easy scope removal and reattachment
Wi-Fi hotspot for connectivity with the AGM app

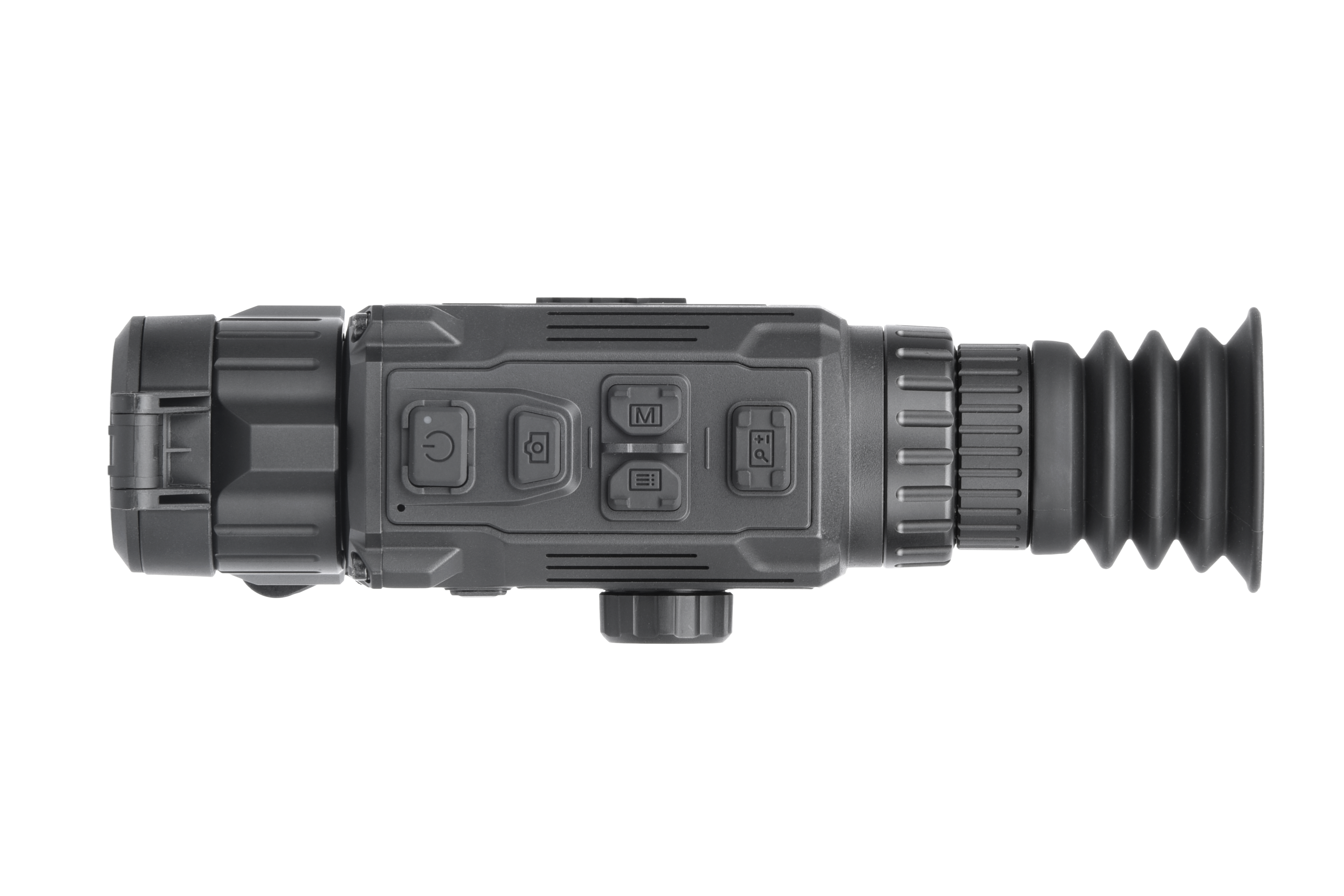

Raised 5-button layout for easy navigation, even with gloves
5 Years Warranty

Characteristics

Detector type: 12μm Uncooled

Refresh rate: 50 Hz

Resolution: 640 x 512

Base Magnification: 2x

FOV: 12.5° × 10.0° (65 ft @ 100 yds)

Package Includes

ADM QD Mount
Two Rechargeable Batteries
Battery Charger
USB Cable
Lens Cloth
Owners Manual
Carrying Case

Downloads

Data Sheet

User Manual

Export Restrictions:

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.

$4,395.00

Compare

Quick Order

Add to cart

Specifications

Dimensions

221 × 68 × 67 mm (8.7 × 2.7 × 2.6 in) (w/o mount)

Battery life (operating at 20°С)

Up to 9 hours (25°C, with hotspot off)

Palettes

Black hot, White hot, Red hot, Fusion

Reticle

10 types, 4 colors, on/off

Scene Mode

Cold, Warm

Picture In Picture Mode (PIP)

Yes

Hotspot

Yes

Video Recording

Yes

Defective Pixels Correction (DPC)

Yes

Digital Magnification

2× - 16×

Magnification

Detector type

12μm VOx Uncooled Focal Plane Array

Standby Mode

Yes

Resolution

640 × 512

Detection Range (6' object)

1800 m/yd

Snapshot

Yes

Lens system

35 mm; F/1.0

Field of view (H × X)

12.5° × 10.0° (65 ft @ 100 yds)

Eye relief

45 mm

Display

0.39-inch, OLED, 1024×768

Storage

Built-in EMMC (16 GB)

Battery Type

Replaceable and Rechargeable Li-ion Battery

External power supply

5 VDC, 2 A, USB Type-C

Operating Temperature Range

-30°C to +55°C (-22°F to 131°F)

Weight

0.51 kg (1.13 lb)

Protection Level

IP67

Package Includes

Thermal Imaging Rifle Scope, Mount, Two Rechargeable Battery, Charger, USB Cable, Lens Cloth, Manual, Carrying Case

Firmware update

FIRMWARE UPDATE INSTRUCTION

Please read the instructions below before updating the firmware.

Check current firmware version of your device, for this go to your device’s main menu to option “Info” or “Version” and check what number you have. Compare the number with the latest version of the firmware on the AGM website.

Download the firmware update package to your PC and unzip it.

NOTE: Do not open the DAV or BIN file on your computer as it may corrupt the file.

Connect the thermal device to your PC with USB cable.
Turn on the thermal device.
Disable the Wi-Fi Hotspot function in the device menu if WiFi is enabled.
Open the detected disk (USB drive) in file manager program. Copy the unzipped .dav file and paste it to the root directory of the device.
Turn off the device.
Turn on the device. After a while, the firmware update process will start automatically. During the update, the screen will display the inscription "Upgrading ...". The update process will be completed when the inscription "Upgrading ..." goes out. Repeat steps 4-6 for each updating file.
Turn off the device and disconnect it from your PC.

WARNING:
If your device does not have a built-in rechargeable battery and is powered by replaceable Lithium batteries, remove the batteries from the battery compartment before connecting the device to your PC, or it may cause computer damage.

If you removed the batteries, please make sure the device is connected to the computer during the update process. Otherwise, the device will shut off and may cause unnecessary upgrade failure, firmware damage, etc.

To begin the procedure for updating the firmware of your equipment, you must confirm that you are familiar with and agree to the "AGM GLOBAL VISION" Export Policy («AGM GLOBAL VISION» Export Policy). By continuing the process of updating your device, you are confirming that you received this device legally and in compliance with all applicable US export laws and that you are not on the Banned Persons List and/or are not affiliated with any of the Banned Persons as defined by the US Government.
If these conditions are met, please check the box on the left and follow the instructions for updating the hardware firmware.

Please check the latest firmware. Click the FW Version to download the firmware update package.

AGM RATTLER V2 19-256, AGM RATTLER V2 25-256, AGM RATTLER V2 25-384, AGM RATTLER V2 35-384, AGM RATTLER V2 35-640, AGM RATTLER V2 50-640, AGM RATTLER-C V2 19-256, AGM RATTLER-C V2 35-384, AGM RATTLER-C V2 50-640

Firmware Versions:
- V5.5.88_240401
  # Brightness Adjustment on AGM Connect APP

  # Burning Prevention Optimization
  allows the burning prevention is enabled by default.

  # Lithuanian is added as one of the system languages.

  # Zeroing via AGM Connect APP. (Only scope models)
