AGM VICTRIX PRO TC50-384

PART #3142456006VP51

0 reviews | Write a review

prod-img

Description And features

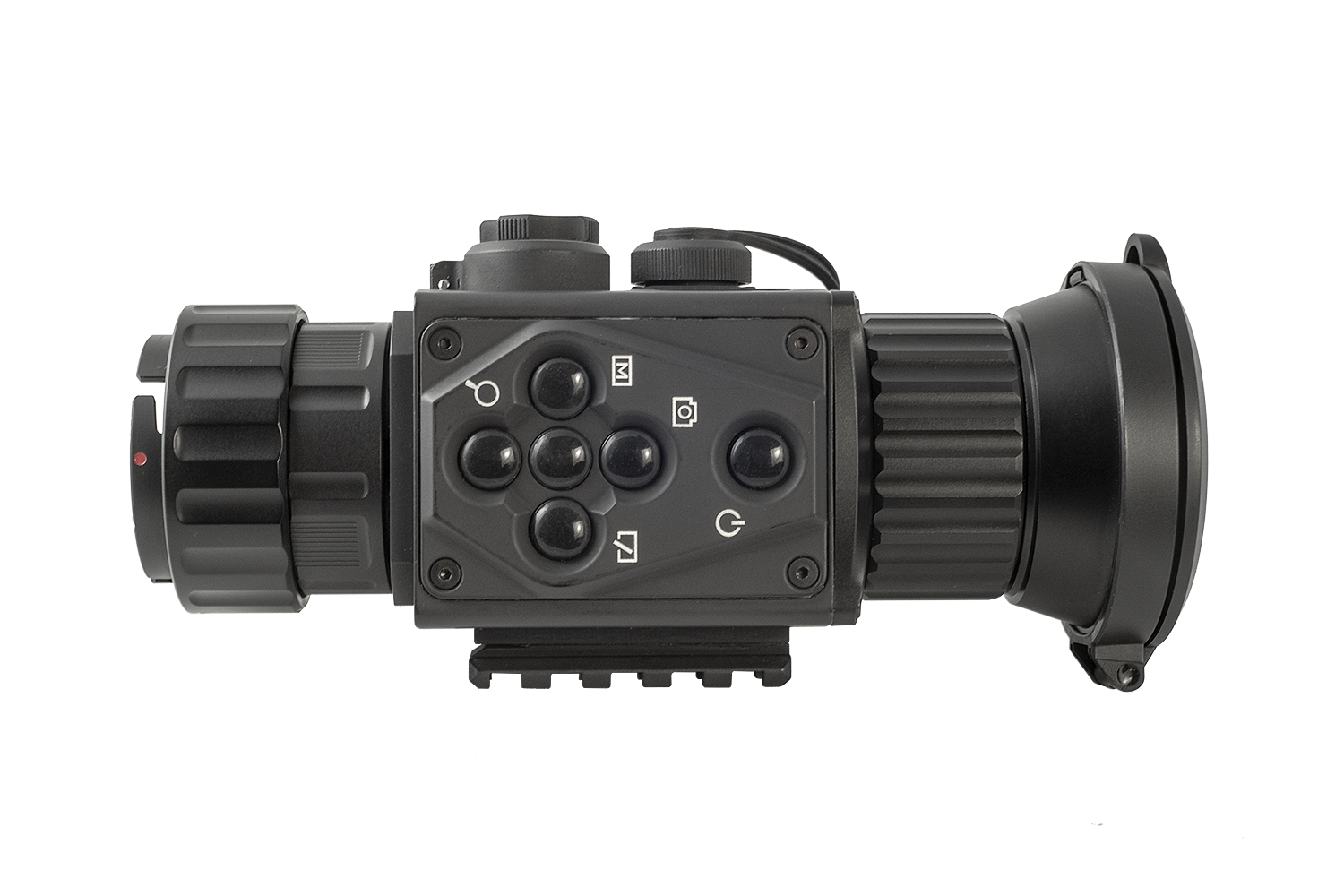

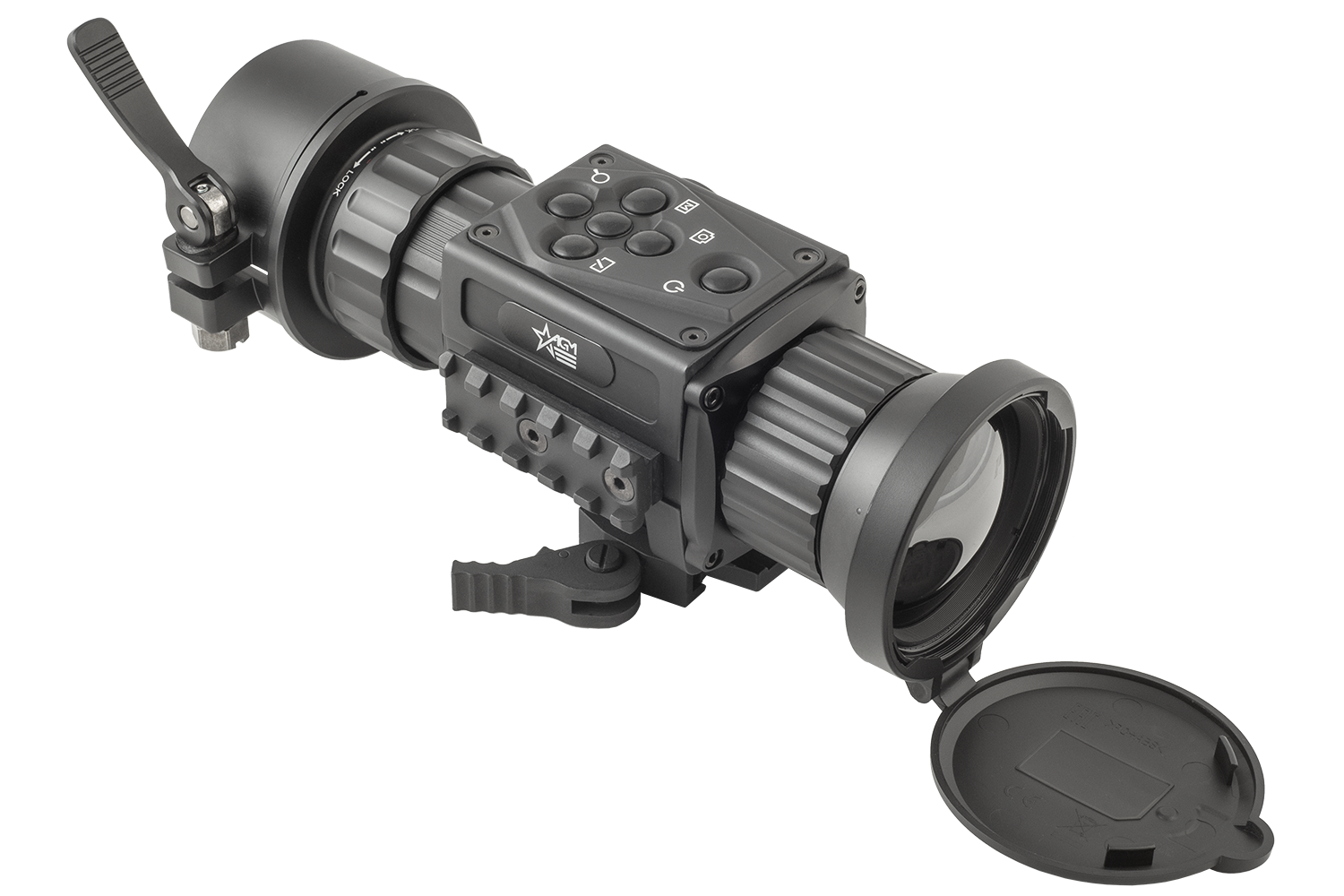

The AGM Victrix PRO is a compact thermal imaging clip-on system that allows quick transformation of the day optics into thermal imaging device without any special tools or equipment.

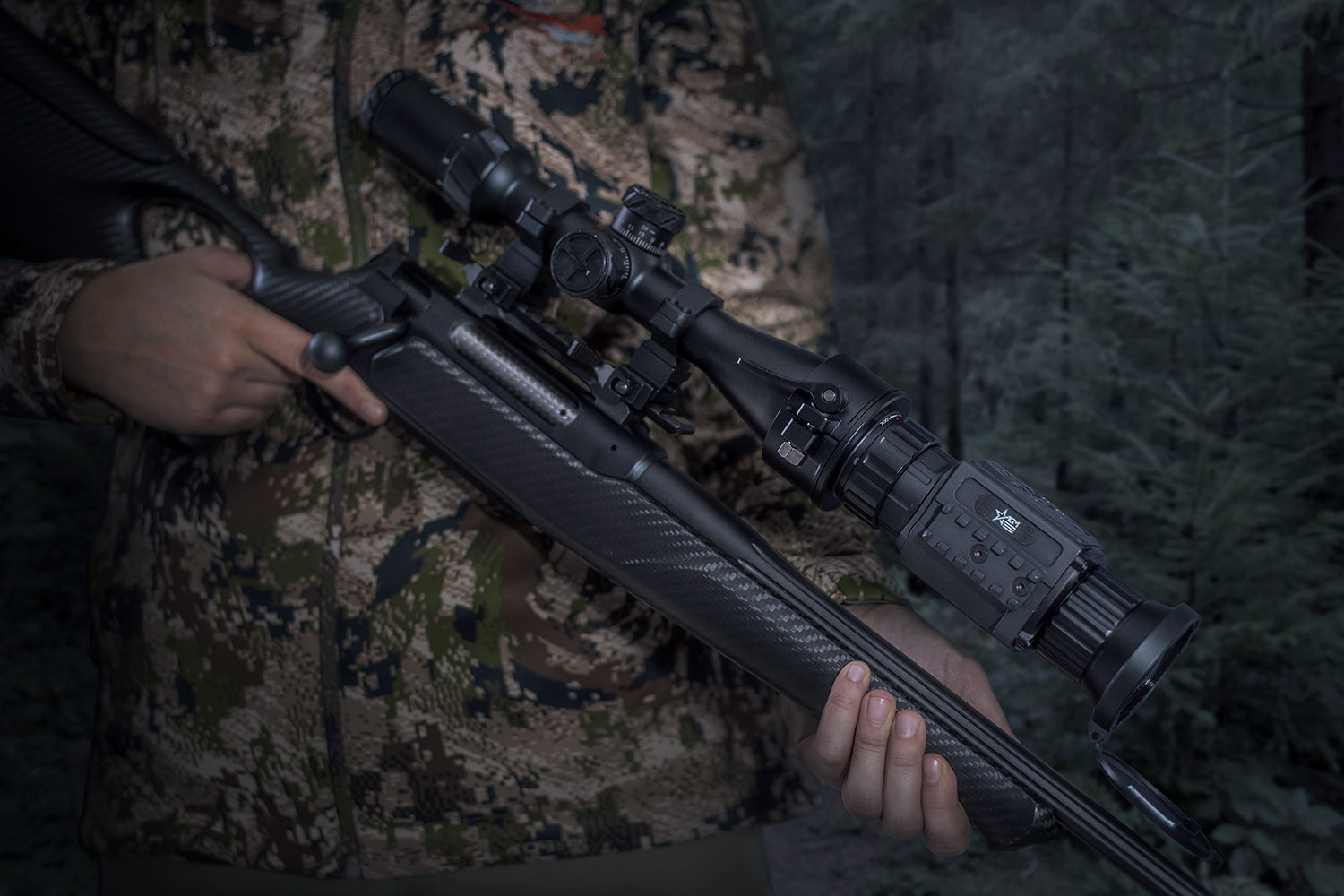

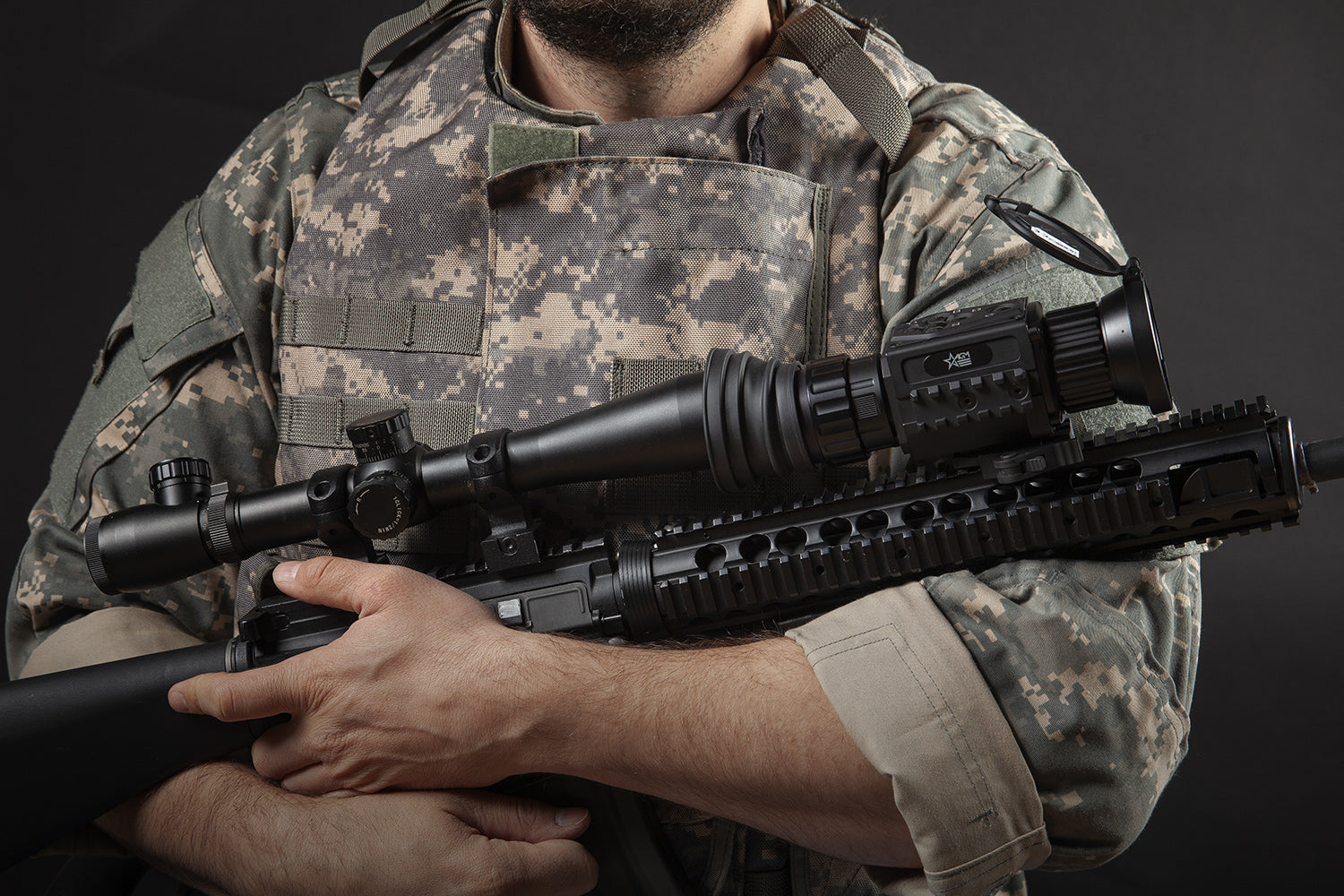

Victrix PRO has a high-sensitivity thermal detector with and a 1024x768 OLED monitor, which provides a clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The product is mainly applied to scenarios such as patrolling, hunting, etc. The Victrix PRO can easily be attached in front of rifle scopes with magnification up to 8x for medium range use.

Powered with two CR123 batteries the AGM Victrix PRO gives up to 4.5 hours of continuous operation time. An external 5V power bank (battery pack) can be easily connected via a USB connector for a significant increase of operating time. The device is equipped with 16 GB storage for on-board video recording and image capturing. Onboard Wi-Fi module is also available for live video streaming and video/images recording via mobile application.

Warning: California's Proposition 65

  • Quick conversion of daytime optics into thermal imaging scope
  • Mounts in front of any daytime scope, no re-zeroing is required
  • High sensitivity detector
  • 384x288 or 640×512 thermal resolution
  • 1024x768 resolution 0.39-inch OLED display
  • Automatic or manual (silent) calibration
  • Up to 8x digital zoom
  • Video recording and snapshot
  • Built-in 16 GB EMMC memory module
  • Supports distance measurement
  • Adjustable color palettes
  • Wi-Fi data transmission
  • Waterproof, shockproof
  • Up to 4.5 hours continuous working
  • External power supply capability
  • Limited 3-year warranty

Characteristics

Detector type: FLIR Tau 2 17μm Uncooled Microbolometer

Refresh rate: 50 Hz

Resolution: 384x288

FOV: 14.88° x 11.19°

Downloads
Data Sheet
Export Restrictions:

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.

Sold out

Specifications

Shock and vibration
750 g/ms
Distance Measurement
Yes (Stadiametric Rangefinder)
Scene Mode
Jungle, Recognition
Hotspot
Yes
Uniformity Correction
Auto, Manual, External Correction
Detector type
12 μm VOx Uncooled Focal Plane Arrays
Response Waveband
8 μm to 14 μm
Highest Temperature Spot Tracking
Yes
Standby Mode
Yes
Refresh rate
50 Hz
Detection Range (6' object)
2500 m/yd
Snapshot
Yes
Lens system
35 mm, F1.0
Optical magnification
1x
Power
5 VDC/2 A, USB Type-C interface Supports external power supply
Mounting
Optional Front Quick Release Adapters for different front lens diameter or Quick Release Mount for Picatinny/ Weaver rail
Field of view (H × X)
7.5° × 5.6°
Storage
16 GB EMMC
Record Video
On-board video recording
Battery Type
Two CR123A (3V) Lithium or two RCR123 (up to 4.2V) Rechargeable Batteries
CVBS Output
Yes (via USB)
Battery Operating Time
Up to 4.5 hours continuous running
Battery Capacity Display
Yes
Weight
0.62 kg ( 1.36 lb)
Working Temperature/ Humidity
-20°C to 55°C (-4°F to 131°F)
Overall Dimensions
166 × 82 × 66 mm (6.5 × 3.2 × 2.6 in)
Protection Level
IP67
