AGM COMANCHE-22 NL2

Archive

PART #16CO2122103221

0 reviews | Write a review


Description And features

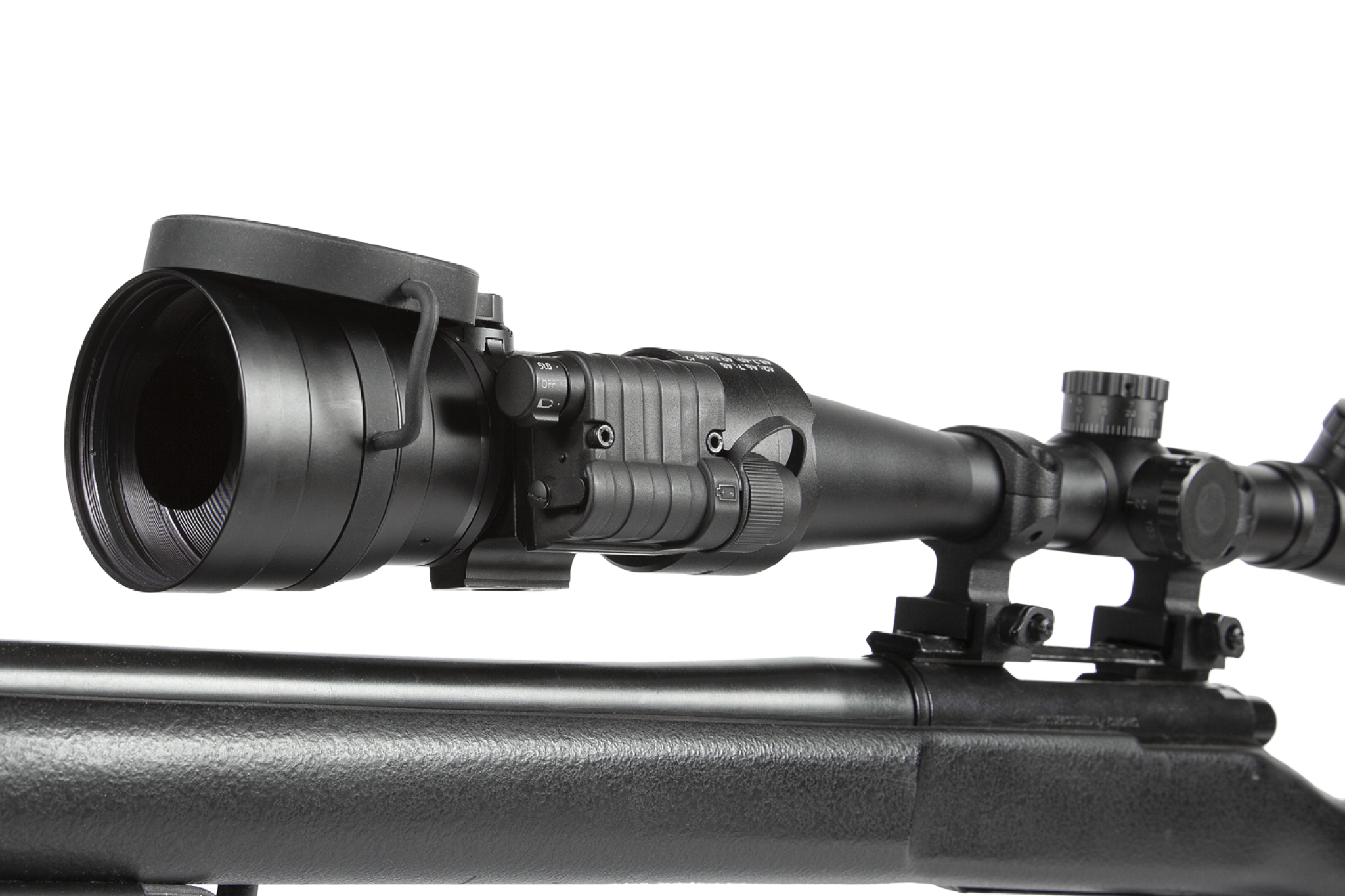

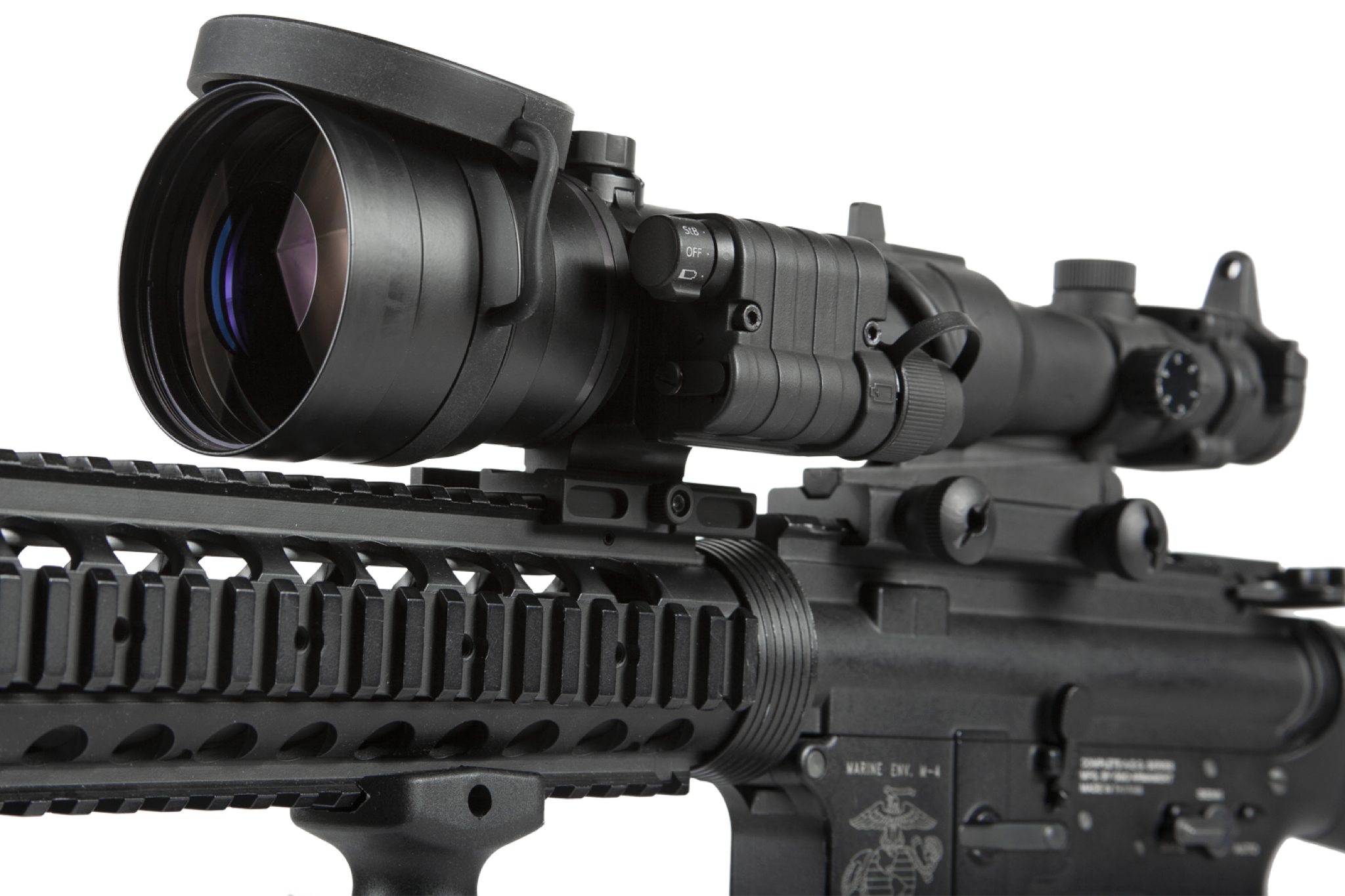

AGM Comanche 22 Night Vision Clip-On (NVCO) system uses the latest advances in night vision clip-on technology. Designed for mid-range nighttime shooting, the Comanche 22 delivers exceptional clarity, reliability, and versatility providing the most significant functionality and features at the lowest possible price. The Comanche 22 is mounted to a standard Weaver or Picatinny rail in front of an existing day scope; transforming it into a Night Vision Device with no re-zeroing required. This NVCO can be used with day scopes of up to 7x magnification for optimal performance and is equipped with a quick release mount and wireless remote control. It provides unmatched target acquisition and enhanced aiming capabilities, making it extremely practical and effective during the most challenging missions.


Warning: California's Proposition 65

  • Simple, quick conversion of daytime scopes to NVDs
  • Mounts in front of any daytime scope, no re-zeroing required
  • Powered by a single Alkaline 1.5 V AA or 3 V CR123A Lithium battery
  • Bright-light cut-off system
  • Quick-release mount
  • 3-Year warranty
Characteristics

Image Intensifier Tube: Gen 2+ "Level 2"

Magnification: Unity 1x

Lens System: 80 mm; F/1.44

FOV: 12°

Package Includes
  • Packing Box
  • Operators Manual
  • Quick-Release Mount
  • Battery Adapter
  • CR123A Battery
  • Wireless Remote Control
  • Picatinny Adapter for Wireless Remote Control
  • Light Suppressor for Day Scope
  • Light Suppressor 1
  • Light Suppressor 2
  • Light Suppressor 3
  • Carrying Case
Downloads
Export Restrictions:

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.


Specifications


Image Intensifier Tube
Gen 2+ "Level 2"
Resolution
45-57 lp/mm
Magnification
Unity 1x
Lens System
80 mm; F/1.44
FOV
12°
Focus Range
10m to infinity
Controls
Direct
Led Indicators
Low battery; Excessive light conditions
Infrared Illuminator
Detachable; Long-range (not included)
Bright Light Cut-Off
Yes
Automatic Shut-Off System
Yes
Battery Type
One CR123A (3V) or AA (1.5 V)
Battery Life (Operating)
Up to 40 hours at 20°C
Exit Pupil Diameter
22 mm
Operating Temperature Range
-40°C to +50°C (-40°F to +122°F)
Storage Temperature Range
-50°C to +50°C (-58°F to +122°F)
Weight
0.75 kg (1.65 lbs)
Overall Dimensions
168×85×80 mm ( 6.6×3.3×3.1 in)
Package Includes
Quick-Release Mount, Battery Adapter, CR123A Battery, Wireless Remote Control, Picatinny Adapter for Wireless Remote Control, Light Suppressor for Day Scope, Light Suppressor 1, Light Suppressor 2, Light Suppressor 3, User Manual, Carrying Case
